Development | Web SDK Quickstart

Step-by-step instructions

Step 1: Publish web plugin script

Publish and download the web plugin script by following the steps below:

Go to platform.twikit.com
Go to your Project
Press the PUBLISH button

More info about web plugin publishing can be found at Projects | Setup.

Step 2: Download the JavaScript example .zip package

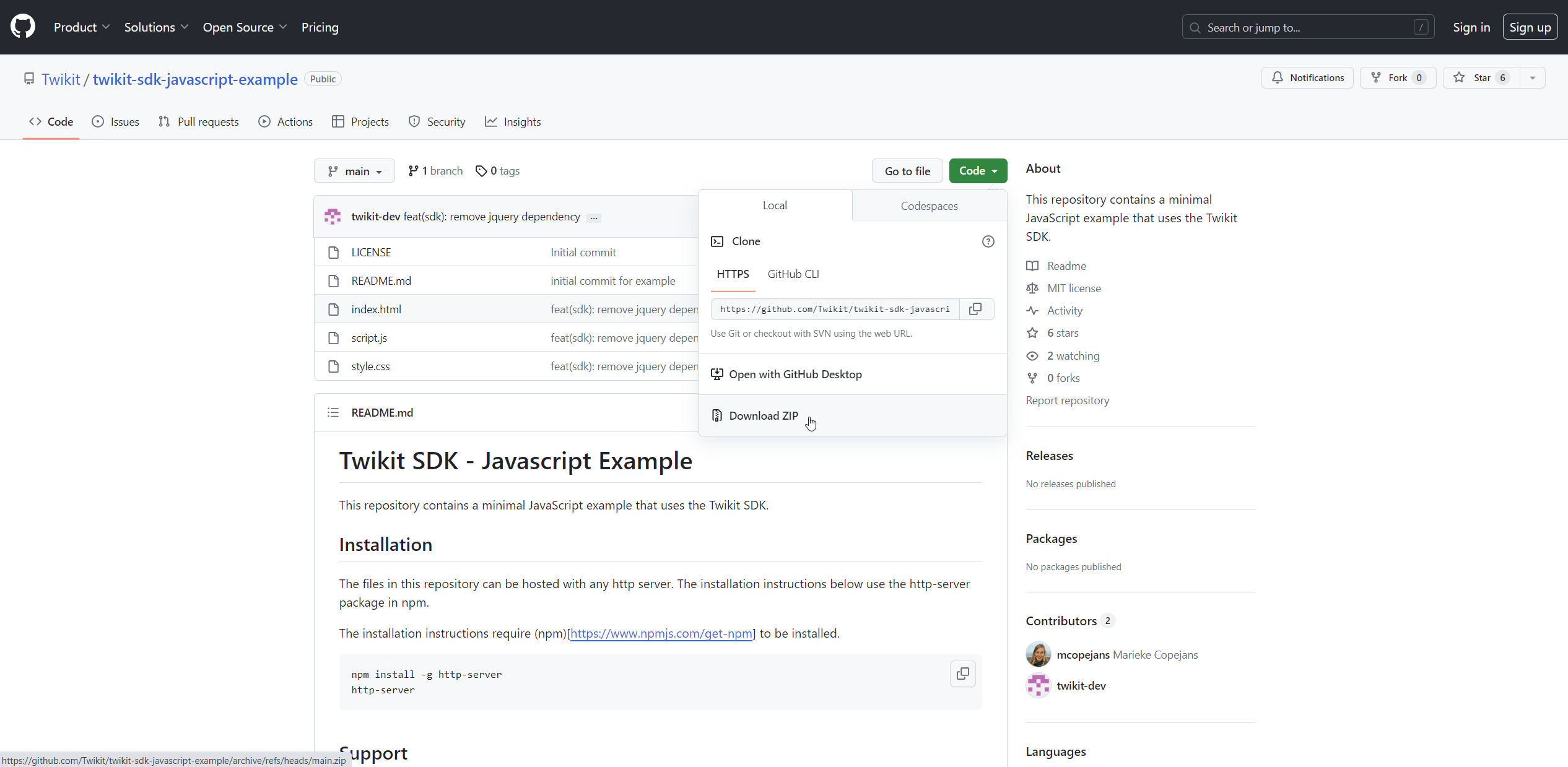

Go to https://github.com/Twikit/twikit-sdk-javascript-example
Download the .zip package
Unzip the package

Step 3: Include web plugin script

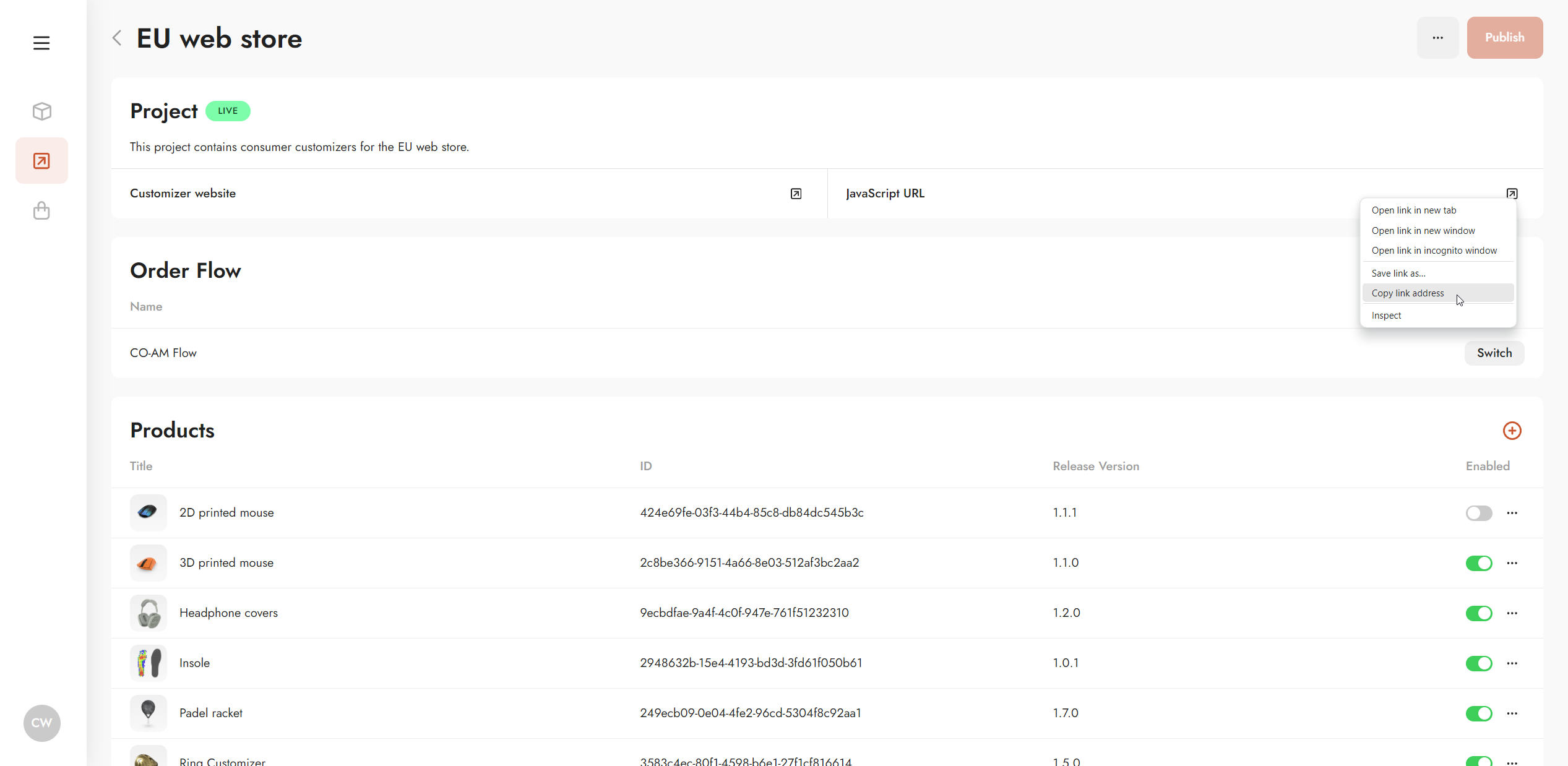

Copy the JavaScript URL and replace the default script source in the downloaded index.html.

Make sure the web plugin script is located above the initialization script in the index.html.

Example in index.html:

HTML

<script src="https://platform-assets.twikit.com/plugin-scripts/812/c09d307e-e57f-4497-8a8f-0005571d94bf/plugin-script.js"></script>

Step 4: Update the initialization script (script.js)

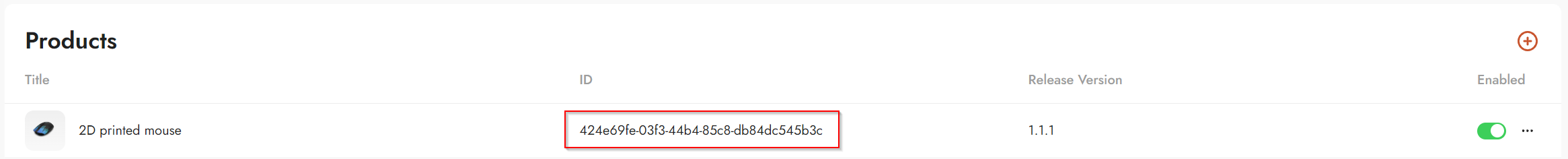

Open the script.js file in a text editor and update the productKey value with the product ID, shown on the Project details page.

Step 5: Display the configurator

The following elements should be included in the index.html file. The plugin script then uses these upon initialization to start the visualization of the configurator.

HTML elements for visualization

HTML

<div id="myCanvas"></div>
<div style="position:fixed; z-index: 1;" id="myParameters"></div>

Initialization Script

JS

var productKey = '9625cacf-f602-4a00-b7b4-5b50c380ce93';
var canvasContainer = document.getElementById("myCanvas");

var context = window.twikit.createContext(productKey, canvasContainer, {
    loaded: function() {
        // Called when the context finished loading.
        console.log('Context loaded!')
    },
    parametersReady: function(parameterContainer) {
        // Called when parameter HTML elements are ready.
        // 'parameterContainer' is a <div> element with parameter HTML elements contained in it.
        document.getElementById("myParameters").appendChild(parameterContainer);
    },
    parameterDataReady: function(parameters) {
        // Called when parameter data is ready.
        // 'parameters' is an array of parameter data.
        console.log('Parameter data ready: ', parameters);
    },
    parameterGroupsDataReady: function(parameters) {
      // Called when parameter data is ready.
        // 'parameters' is an array of parameter data.
    	console.log('Parameter groups data ready: ', parameters);
    },
    statusChanged: function(status) {
        // Called while loading the context to report progress.
        // 'status' reports the loading state, either idle(0), loading(1), busy(2), ready(3)
        console.log('Twikbot status changed: ', status);
    },
    twikbotContextReady: function(internalTwikbotContext) {
        // called when the internal context is ready
		console.log('Twikbot context ready!');
    }
});

All set

Now, you should be all set to further integrate the configurator in your website. Further reading:

Web SDK API documentation: Development | Web SDK Reference

In case you encounter issues, please refer to the troubleshooting section at the bottom of this page.

Examples of JavaScript, Angular, and React

The Twikit GitHub repository contains example projects to get you started quickly. Examples are available for JavaScript, Angular, and React.

https://github.com/Twikit

Troubleshooting

The Twikit development team is here to help in case of questions, bug reports, or feature requests. Reach out to us: https://support.twikit.com
