Output Modifiers

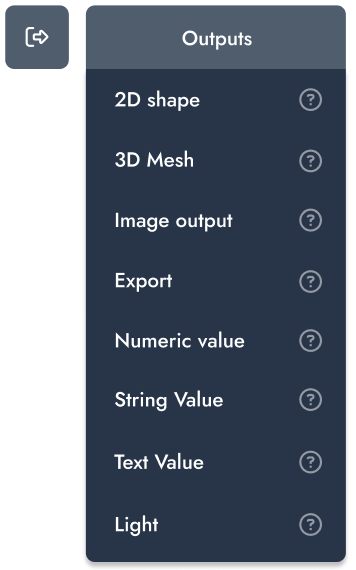

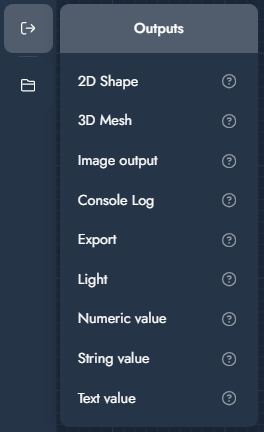

Output modifiers define what is visualized and what is exported when a configuration is saved or ordered. They control the generation of geometry files, images, and structured output data.

Outputs are the final step in the graph, translating configuration results into usable deliverables.

Modifier	Explanation	Input

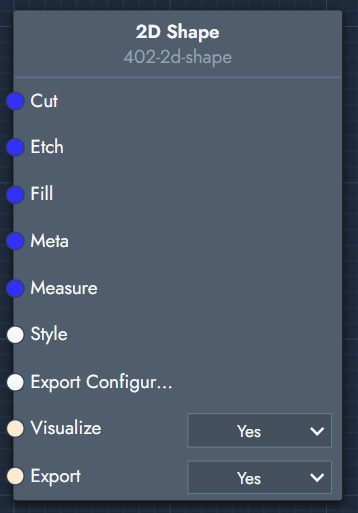

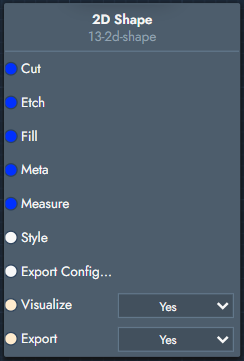

2D Shape	Visualizes and/or exports 2D vector geometry such as SVG, DXF, or PDF.	Inputs Cut: 2D shape intended for cutting operations. Etch: 2D shape intended for engraving or etching. Fill: 2D shape intended for filled areas. Meta: 2D shape containing metadata. Measure: 2D shape containing measurement geometry. Style: Optional shape style modifier controlling line width, color, and appearance. Leave empty for TwikBot's default style. Export Configuration: Optional export configuration modifier controlling filename and format. Visualize: Enables visualization of the 2D output. Export: Enables exporting the 2D output.

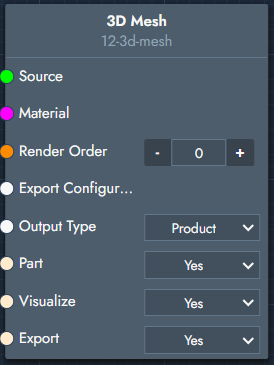

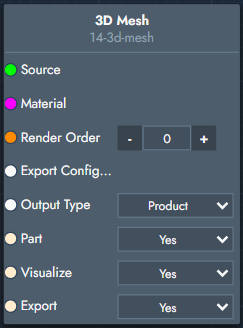

3D Mesh	Visualizes and/or exports a 3D mesh such as OBJ or STL.	Inputs Source: A 3D geometry. Material: Material applied to the mesh for visualization. Render Order: Determines rendering order when multiple meshes are present. Export Configuration: Optional export configuration modifier. Output Type: Defines whether the mesh represents a product or scene output type. This is relevant for use in combination with AR or the Unreal Engine plug-in. Part: Defines whether the mesh is treated as an order part. Visualize: Enables visualization of the mesh. Export: Enables exporting the mesh.

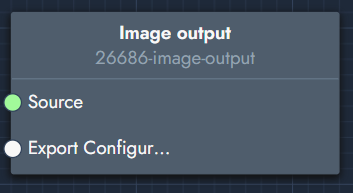

Image output	Exports an image, typically as PNG.	Inputs Source: Image source node. Export Configuration: Optional export configuration defining filename and extension.
Console Log	Outputs debug information to the console.	Inputs Source: Any value or node output. Info Text: Optional label shown in the log.

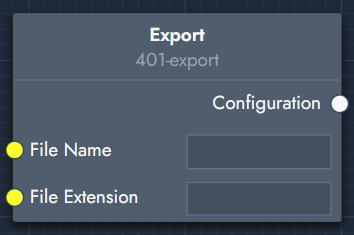

Export	Defines configuration settings shared by export-capable output nodes.	Inputs File Name: Name of the exported file. File Extension: File extension and format of the export. Outputs Configuration: Export configuration reference.
Light	Visualizes lighting effects in the scene.	Inputs Light: Output from a light modifier. Visualize: Enables visualization of the light.

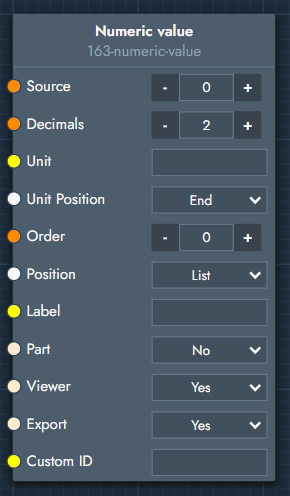

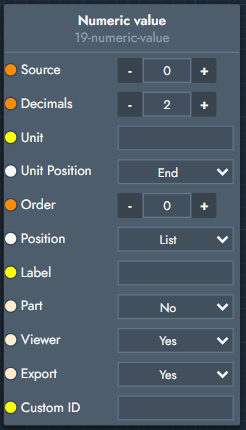

Numeric value	Visualizes a numeric value in the customizer UI and exports a numeric value to the `additional_outputs.json` file.	Inputs Source: Numeric value to export. Decimals: Number of decimal places used for formatting. Unit: Unit label appended to the value. Unit Position: Position of the unit relative to the value (start or end). Order: Ordering index for exported values. Position: Placement category, list (inline) or summary (at the end). Label: Display label for the value. Part: Whether the value is treated as an order part. Viewer: Visualize the value or not. Facade can signal changes to Numeric values through the primitiveComponents$ observable. Export: Enables exporting the value. Custom ID: Custom identifier used in exported data.

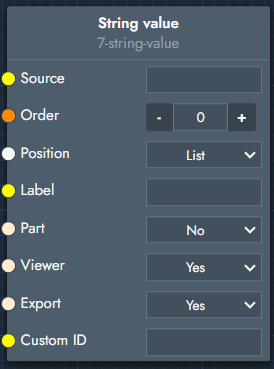

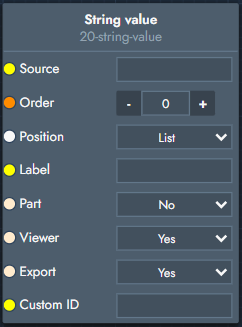

String value	Exports a string value to the `additional_outputs.json` file.	Inputs Source: String value to export. Order: Ordering index for exported values. Position: Placement category. Label: Display label. Part: Whether the value is treated as an order part. Viewer: Visualize the value or not. Facade can signal changes to String values through the primitiveComponents$ observable. Export: Enables exporting the value. Custom ID: Custom identifier used in exported data.

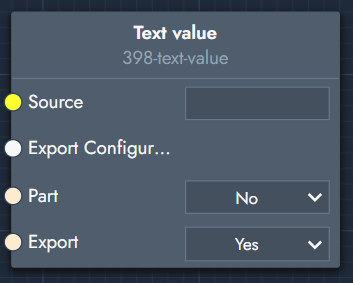

Text value	Exports a text value, typically as a separate text file in the `additional_outputs.json` file.	Inputs Source: Text value to export. Export Configuration: Optional export configuration defining filename and extension. Part: Whether the value is treated as an order part. Export: Enables exporting the text.
